The winter time found me huddled in the small shop most evenings, after my son fell asleep, puttering on small components of our vessel. A 24 gallon diesel tank was built from steel with a tall narrow design to fit in a box keel. It has a sloping bottom, sump with clean out, a deep fill, and will supply a 12 gallon day tank, which in turn gravity feeds the Volvo MD-2
-
- Plate arrives in trailer
-
- 4:1 block and tackle, a c clamp and a 2×4 sled
-
- ready to cut
-
- plasma cutting tank and hatch plates
-

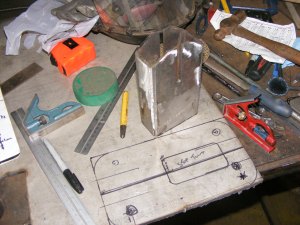

- tank layout, ground white
-
- underside of fill tube
-
- Without final side plate
-
- cutting supply tube
Lazarette and cockpit locker hatches have been fabricated from steel as well, TIG welded 1/8 plate with flat bar enforcing the convex curvature of the hatch tops. The main forward cabin hatch was fabricated with 5052 Aluminum, TIG welded on outside seems.. which oddly i don’t have a photo of.
-
- Hatch Hinges and rigging points
-

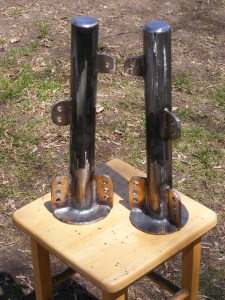

- Hatches, main tank, and mainsheet horse-posts
-

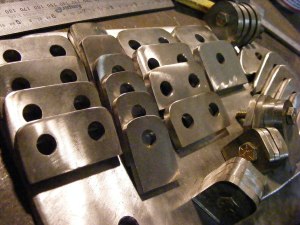

- more than 70 eye’s and attachments have been fabricated of 304 ss
